Load Bearing: >20T(static)
Warranty: 18 Months
Body material: Heavy-duty casting aluminum
Power supply: The solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
6 LED Solar Road Marker Features:
•Up to 800 meters of visibility.
•Reliable all night, all-year-round performance.
•Totally sustainable harnessing free solar energy.
•Used where street lighting is either unavailable, Solar Road Marker not cost-effective, or environmentally impossible.
•Cost-effective, Solar Road Marker are easy to install and require absolutely no wires or maintenance.
•6 LED Solar Road Marker self-contained surface mounted.
•6 LED Solar Road Marker accept OEM/ODM
6 LED Solar Road Marker Parameters:
| Material: | Heavy-duty casting aluminum |
| Power supply: | The solar panel(monocrystalline 2.5V/0.2W) |
| Battery: | NI-MH 1.2V/800MAH or lithium battery |
| Working model: | Blinking or Constant Charging in the daytime and working automatically at night |
| LED: | 3pcs per side, total 6 pcs |

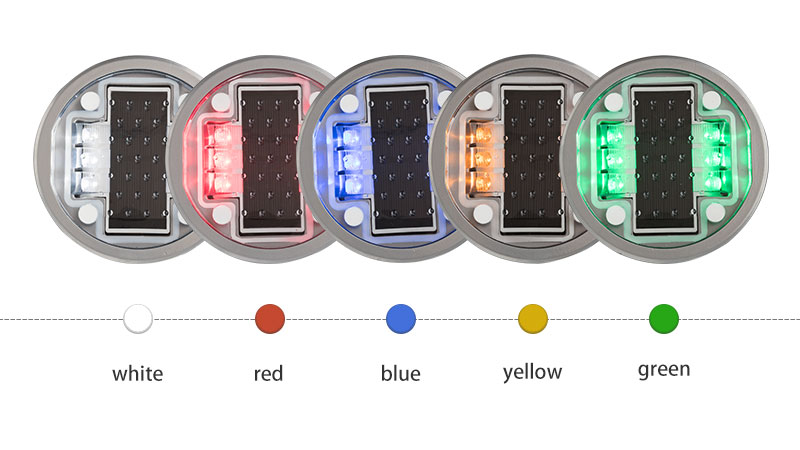

| LED colors: | Yellow, White, Red, Green, Blue |
| Life span: | 3 years |
| Resistance: | >20T(static) |
| Size: | 120*50mm(bottom) 4.72″*1.97″(bottom) 135*50mm(upper) 5.31″*1.97″(upper) |
| Visual distance: | >800M |
| Water proof: | IP68 |
| Carton Size: | 24pcs/ctn; weight: 17kgs; Carton size: 43*25*28CM/57*41*23.5CM 24pcs/ctn; weight: 37.48bs; Carton size: 16.92″*9.84″*11.02″/22.44*16.14″*9.25″ |
Application of 6 LED Solar Road Marker C1:
♥Schools and hospitals
♥Highways
♥High traffic areas
♥Walking paths
♥Transit stations
♥Parks and campuses
♥Urban Road
Installation Method Of 6 LED Solar Road Marker C1:
1. Carefully mark the distance between the placement of the solar road marker. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill Φ120mm and depth will be 50mm.
2. Remove all debris from the installation hole.
3. Pour epoxy into the holes per the manufacturer’s instruction.
4. Verity that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the solar road marker shaft.
5. Set the lighting surface of the solar road marker to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and solar road marker shaft.
6. After curing the solar road marker for 6-8 hours, remove the installation of the isolation facility.
