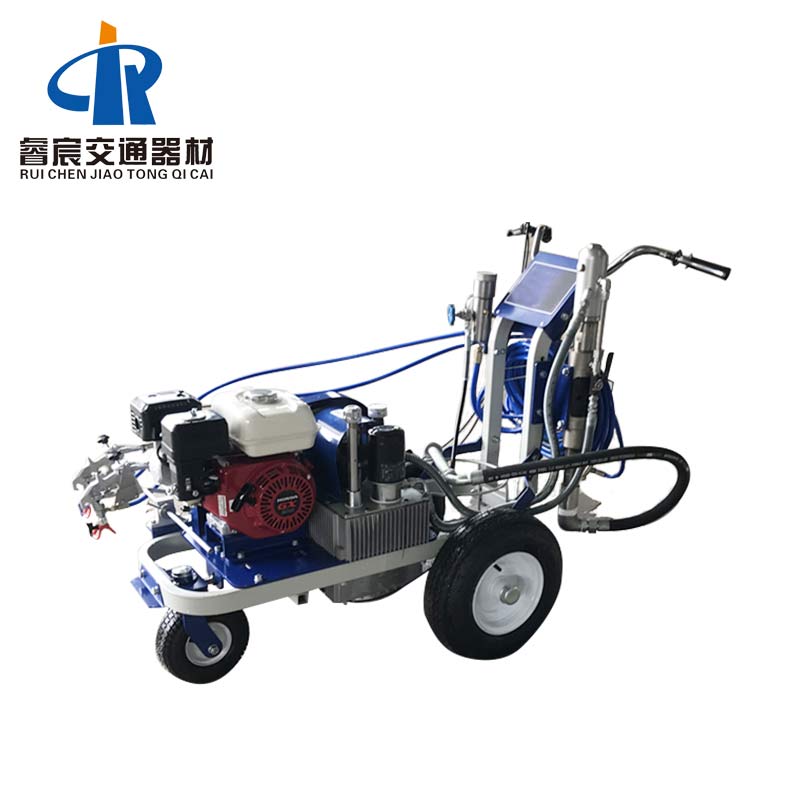

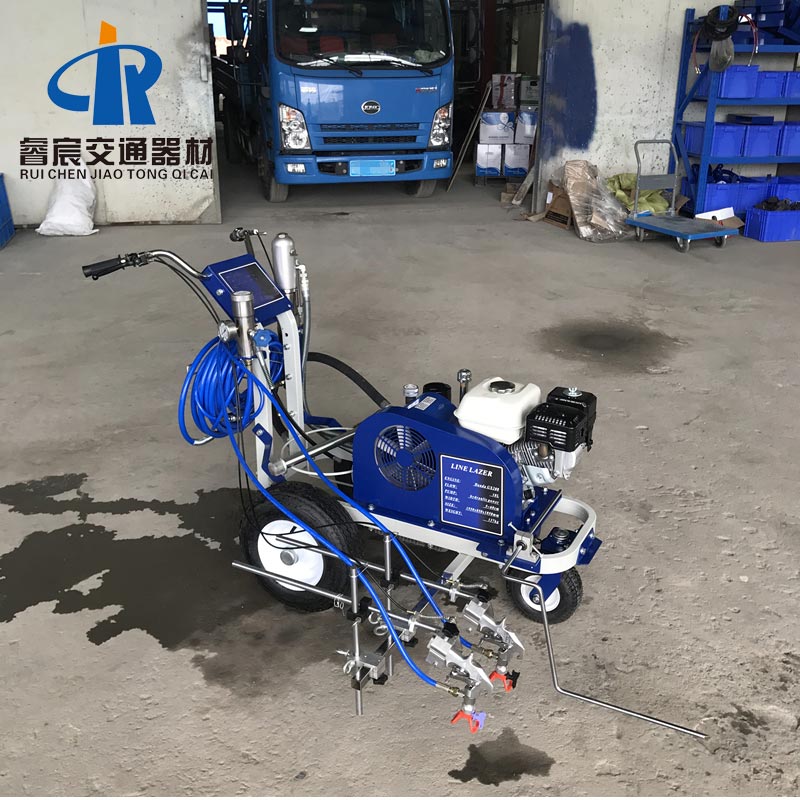

Plunger Pump Road Painting Machine RC-CRM-3
Plunger Pump Road Painting Machine RC-CRM-3
Plunger Pump Road Painting Machine RC-CRM-3
Plunger Pump Road Painting Machine RC-CRM-3
Plunger Pump Road Painting Machine RC-CRM-3

Engine: 6.5HP Honda GX20
Support nozzle: 423
Max. Marking speed: 130m/min
Thickness of spray: 0.2-0.4mm
Marking Width: 5-30cm(1 spraying gun)
5-60cm(2 spraying gun)
Flow of spray: 10L/min

Share With :
Details

Plunger Pump Road Painting Machine Features

•One or two hands spray guns to choose from.

•Plunger pump: Stainless Plunger pump, longer service life.

•5.5HP imported gasoline engine, have a stable and strong performance.

•Special equipment for normal temperature marking construction, easy to operate.

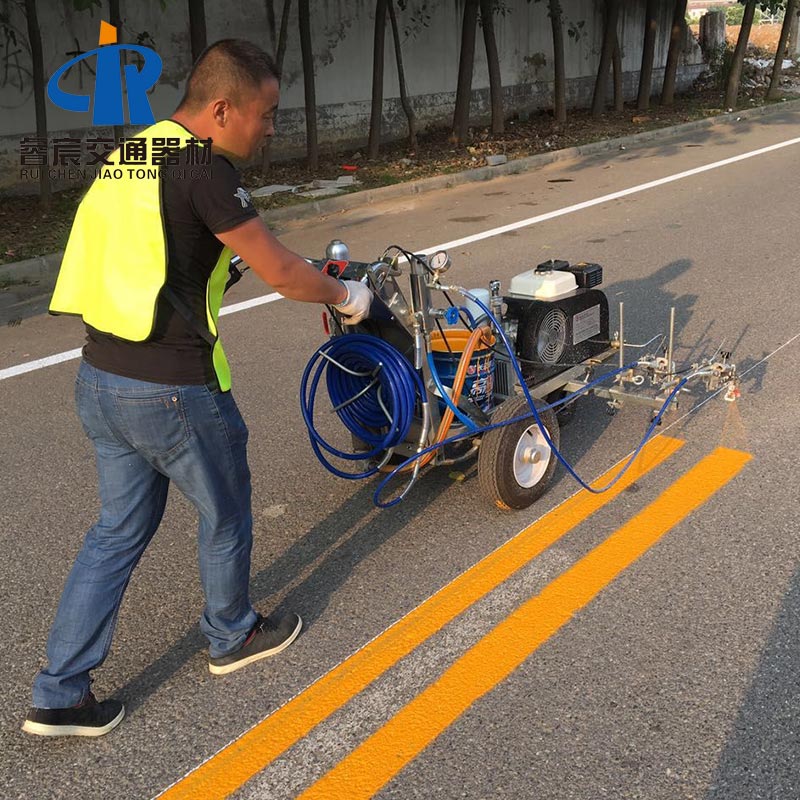

•Road marking spray paint machine is mainly suitable for painting straight lines, dashed lines, curves, zebra crossings, swords, arrows, graphic signs, etc. in factories and on highways, parking lots, airports, and gas stations.

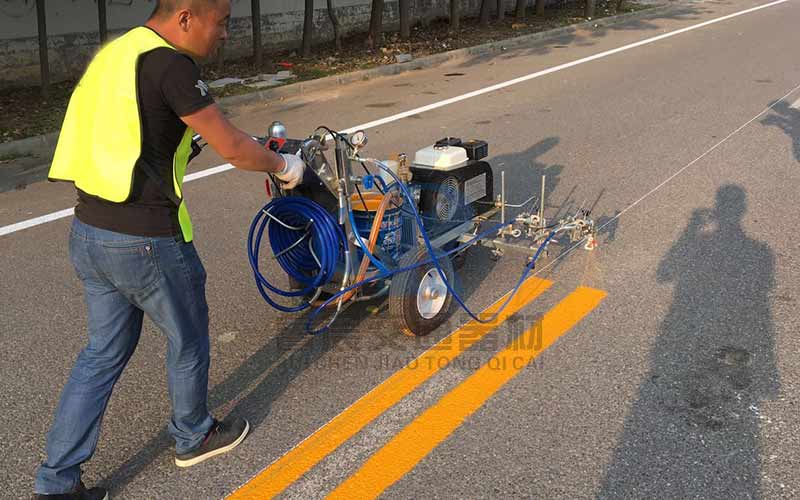

Plunger Pump Road Painting Machine-5
Plunger Pump Road Painting Machine



Plunger Pump Road Painting Machine Parameters:

Engine: 6.5HP Honda GX20
Plunger Pump: 10L(Taiwan Brand)
Oil Pump: 10L(Japan Daijin)
Operation Mode: Hydraulic Drive
Max. Marking speed: 130m/min
Support nozzle: 423
Thickness of spray: 0.2-0.4mm
Spraying gun: Single or Double
Marking Width: 5-30cm(1 spraying gun)

5-60cm(2 spraying gun)

Work pressure: 10-30MPa
Flow of spray: 10L/min
Package: 1650*900*1170mm,145kg

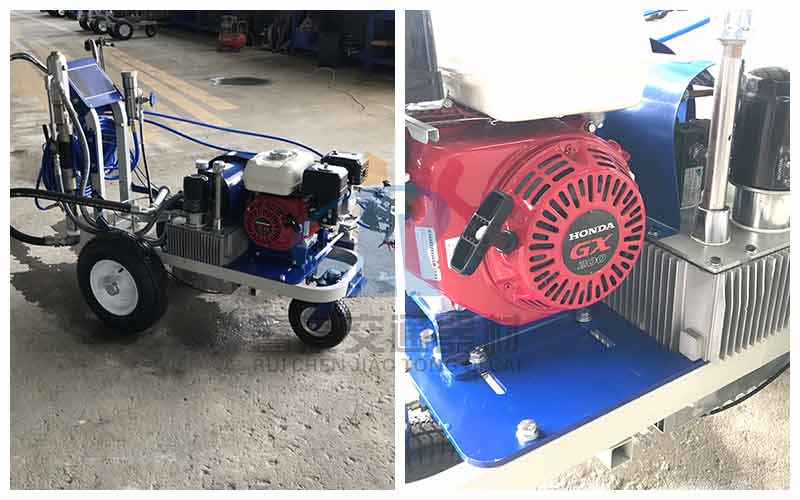

Plunger Pump Road Painting Machine-6
Plunger Pump Road Painting Machine
