Load Bearing: >30T(static)
Warranty: 12 Months
Body material: Heavy-duty casting aluminum
Battery: Lithium battery 1000mA
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Round Solar Pavement Levelled Marker Features:
•Up to 800 meters of visibility.
•Reliable all night, all-year-round performance.
•Totally sustainable harnessing free solar energy.
•Used where street lighting is either unavailable, solar road marker not cost-effective, or environmentally impossible.
•Cost-effective, LED solar road markers are easy to install and require absolutely no wires or maintenance.
•Round Solar Pavement Levelled Marker self-contained surface mounted.
•Round Solar Pavement Levelled Marker C3 accept OEM/ODM
Round Solar Pavement Levelled Marker Parameters:
| Material: | Aluminium+ PC |
| Power supply: | The solar panel(monocrystalline 2.5V/0.3W) |
| Battery: | Lithium battery 1000mA |
| Working model: | Blinking or Constant Charging in the daytime and working automatically at night |
| Life span: | 5 years for lithium battery; |

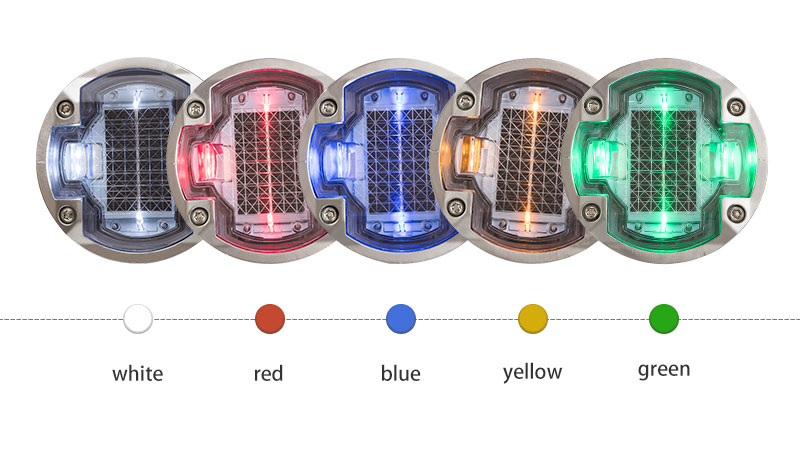

| LED colors: | Yellow, White, Red, Green, Blue |
| Resistance: | >30T(static) |
| Size: | φ123*45mm (φ4.84″*1.77″) |
| Visual distance: | >800M |
| Water proof: | IP68 |
| Carton Size: | 1pcs/box; 30pcs/ctn; Weight: 30kgs; Carton size: 67.5*28*20cm (1pcs/box; 30pcs/ctn; Weight: 66.14bs; Carton size: 26.57″*11.02″*7.87″) |
Application of Round Solar Pavement Levelled Marker:
♥Schools and hospitals
♥Highways
♥High traffic areas
♥Walking paths
♥Transit stations
♥Parks and campuses
♥Urban Road
How to install Round Solar Pavement Levelled Marker:
1. Carefully mark the distance between the placement of solar road marker lights. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill 125mm and depth will be 45mm.
2. Remove all debris from the installation hole.
3. Pour epoxy into the holes per the manufacturer’s instruction.
4. Verity that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the solar road marker shaft.
5. Set the lighting surface of the solar pavement levelled marker to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and solar road marker shaft.
6. After curing the LED solar road marker for 6-8 hours, remove the installation of the isolation facility.
