Thermoplastic Road Line Marking Machine RC-TRM-2
Thermoplastic Road Line Marking Machine RC-TRM-2
Thermoplastic Road Line Marking Machine RC-TRM-2
Thermoplastic Road Line Marking Machine RC-TRM-2
Thermoplastic Road Line Marking Machine RC-TRM-2

Thermoplastic Tank: Double Stainless Steel Heating Insulation Barres Capacity 100kg
Marking width: 100-450mm (At customers’ option)
Glass Bead Container: 10kg/box
Landing Knife: Carbide, with eccentric sleeve device can adjust the thickness of the scope marking:1-2.5 mm

Share With :
Details
Thermoplastic Road Marking Machine Features

•Labor-saving: Unique design of screeding knife bottom ensure a good sealing and easy open & close.

•Wide application: Thermoplastic Road Marking Machine have the advantage of low investment, light weight, suitable for the marking work with thermoplastic paints in all kinds of roads, vehicle parks, schools, factories, etc.

•Road line marking machines with adjustable glass beads dispenser: Synchronous clutching and spreading, equipped with speed shifting device. Adjustable width 50-200mm..

•Double stainless steel heating insulation barrels, capacity 100kg.

•Scree-ding type road marking hopper: Using the hopper, making the lines much neat and more elegant.

•Adjustable pointer in order to improve work efficiency.

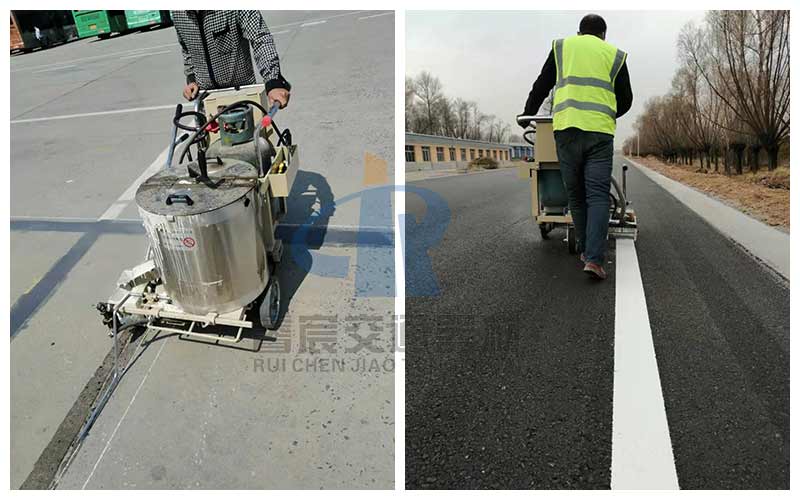

Thermoplastic Road Line Marking Machine-6
Thermoplastic Road Line Marking Machine



Thermoplastic Road Marking Machine Parameters:



   Paint Barrels: double stainless steel heating insulation barrels, capacity 100 kg,

plug-in manually mixer devices, removable devices

    Glass Bead Storage Box: 10 kg / box
    Glass Beads Sow Browser: synchronous clutch spread with speed gearshift device
    Marking Width: High-precision ultra-thin material manufacturing, scraper-type structure, the standard configuration of 150 mm, Can provide 100-450mm
    Landing Knife: Carbide, with eccentric sleeve device can adjust the thickness of the scope marking :1-2.5 mm
    Tire: Alloy Wheel Unit, a special heat-resistant rubber, after the last round with positioning devices for the body along a straight line direction
    Heating Method: liquefied petroleum gas
    Subscript Line Width: 150 mm engineering requirements in accordance with the replacement of different specifications crossed Doo
     Size: 1250 * 900 * 950 mm
     Net Weight: 110kg (242.5ib)

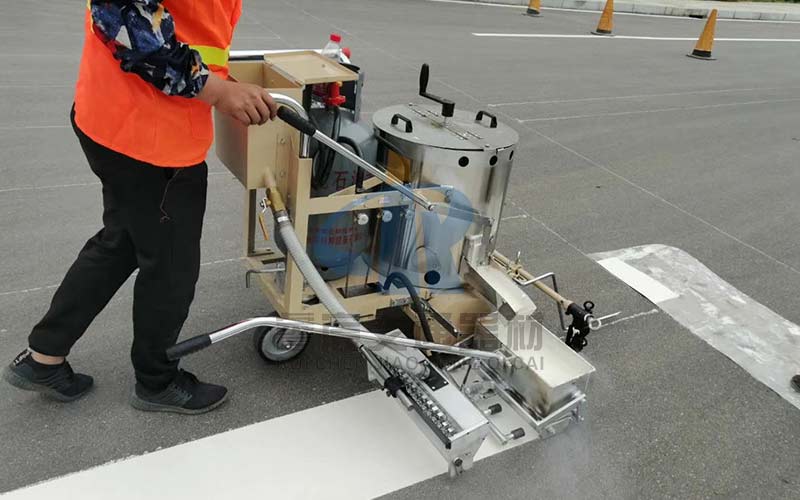

Thermoplastic Road Line Marking Machine-5
Thermoplastic Road Line Marking Machine
